Product				Compare
Ledinaire panel gen5, 34 W, 600x600 mm, VPC, 4100 lm, 4000 K RC065B G5 41S/840 PSU W60L60 NOC CFW 911401875985 600x600 mm, Visible profile ceiling version, Steel, White, Signal white (RAL9003), Power supply unit external (On/Off), 4100 lm, 34 W, 120 lm/W, 4000 K, (0.38, 0.38) SDCM ≤5, Beam angle 120°, Microprismatic lens, Acrylate, IP20/40 \| Finger-protected;Wire-protected, IK02 \| 0.2 J standard, Safety class II, 2×0.75mm², Flying leads/wires	120	4100	4000	Product leaflet PDF IES files IES Where to buy
Ledinaire panel gen5, 28 W, 600x600 mm, VPC, 3400 lm, 4000 K RC065B G5 34S/840 PSU W60L60 NOC SC 911401875585 600x600 mm, Visible profile ceiling version, Steel, White, Signal white (RAL9003), Power supply unit external (On/Off), 3400 lm, 28 W, 120 lm/W, 4000 K, (0.38, 0.38) SDCM ≤5, Beam angle 120°, Microprismatic lens, Acrylate, IP20/40 \| Finger-protected;Wire-protected, IK02 \| 0.2 J standard, Safety class II, Push-in connector 2-pole, SC \| Safety cable	120	3400	4000	Product leaflet PDF IES files IES Where to buy
Ledinaire panel gen5, All-in, 28 W, 600x600 mm, VPC, 3400 lm, 3600 lm, 3000 K, 4000 K, DALI, UGR19 RC065B G5 34_36S/830_40 PSD W60L60 OC SC 911401877485 600x600 mm, Visible profile ceiling version, Steel, White, Signal white (RAL9003), Power supply unit with DALI interface, All-in, Multi Color Temperature, 3400 lm, 3600 lm, 28 W, 120 lm/W, 3000 K, 4000 K, (0.43, 0.40) SDCM ≤5(0.38, 0.38) SDCM ≤5, UGR19, Beam angle 90°, Microprismatic lens, Acrylate, IP20/40 \| Finger-protected;Wire-protected, IK02 \| 0.2 J standard, Safety class II, Push-in connector 4-pole, SC \| Safety cable	120	3400 3600	3000 4000	Product leaflet PDF IES files IES Where to buy
Ledinaire panel gen5, 34 W, 600x600 mm, VPC, 4100 lm, 4000 K RC065B G5 41S/840 PSU W60L60 NOC CFW CL 911401876185 600x600 mm, Visible profile ceiling version, Steel, White, Signal white (RAL9003), Power supply unit external (On/Off), 4100 lm, 34 W, 120 lm/W, 4000 K, (0.38, 0.38) SDCM ≤5, Beam angle 120°, Microprismatic lens, Acrylate, IP20/40 \| Finger-protected;Wire-protected, IK02 \| 0.2 J standard, Safety class II, 2×0.75mm², Flying leads/wires	120	4100	4000	Product leaflet PDF IES files IES Where to buy
Ledinaire panel gen5, All-in, 28 W, 600x600 mm, VPC, 3400 lm, 3600 lm, 3000 K, 4000 K, UGR19 RC065B G5 34_36S/830_40 PSU W60L60 OC SC 911401877285 600x600 mm, Visible profile ceiling version, Steel, White, Signal white (RAL9003), Power supply unit external (On/Off), All-in, Multi Color Temperature, 3400 lm, 3600 lm, 28 W, 120 lm/W, 3000 K, 4000 K, (0.43, 0.40) SDCM ≤5(0.38, 0.38) SDCM ≤5, UGR19, Beam angle 90°, Microprismatic lens, Acrylate, IP20/40 \| Finger-protected;Wire-protected, IK02 \| 0.2 J standard, Safety class II, Push-in connector 2-pole, SC \| Safety cable	120	3400 3600	3000 4000	Product leaflet PDF IES files IES Where to buy
Ledinaire panel gen5, 28 W, Module 625, VPC, 3400 lm, 4000 K, DALI, UGR19 RC066B 34S/840 PSD W62L62 OC 911401876785 Module 625, Visible profile ceiling version, Steel, White, Signal white (RAL9003), Power supply unit with DALI interface, 3400 lm, 28 W, 120 lm/W, 4000 K, (0.38, 0.38) SDCM ≤5, UGR19, Beam angle 90°, Microprismatic lens, Acrylate, IP20/40 \| Finger-protected;Wire-protected, IK02 \| 0.2 J standard, Safety class II, Push-in connector 4-pole	120	3400	4000	Product leaflet PDF IES files IES Where to buy
Ledinaire panel gen5, All-in, 28 W, 600x600 mm, VPC, 3400 lm, 3600 lm, 3000 K, 4000 K RC065B G5 34_36S/830_40 PSU 60x60 NOC SC 911401877385 600x600 mm, Visible profile ceiling version, Steel, White, Signal white (RAL9003), Power supply unit external (On/Off), All-in, Multi Color Temperature, 3400 lm, 3600 lm, 28 W, 120 lm/W, 3000 K, 4000 K, (0.43, 0.40) SDCM ≤5(0.38, 0.38) SDCM ≤5, Beam angle 120°, Microprismatic lens, Acrylate, IP20/40 \| Finger-protected;Wire-protected, IK02 \| 0.2 J standard, Safety class II, Push-in connector 2-pole, SC \| Safety cable	120	3400 3600	3000 4000	Product leaflet PDF IES files IES Where to buy
Ledinaire panel gen5, 28 W, 600x600 mm, VPC, 3400 lm, 6500 K, UGR19 RC065B G5 34S/865 PSU W60L60 OC CFW 911401875385 600x600 mm, Visible profile ceiling version, Steel, White, Signal white (RAL9003), Power supply unit external (On/Off), 3400 lm, 28 W, 120 lm/W, 6500 K, (0.31, 0.33) SDCM ≤5, UGR19, Beam angle 90°, Microprismatic lens, Acrylate, IP20/40 \| Finger-protected;Wire-protected, IK02 \| 0.2 J standard, Safety class II, 2×0.75mm², Flying leads/wires	120	3400	6500	Product leaflet PDF IES files IES Where to buy

29 items

of 4

Products per page

Description

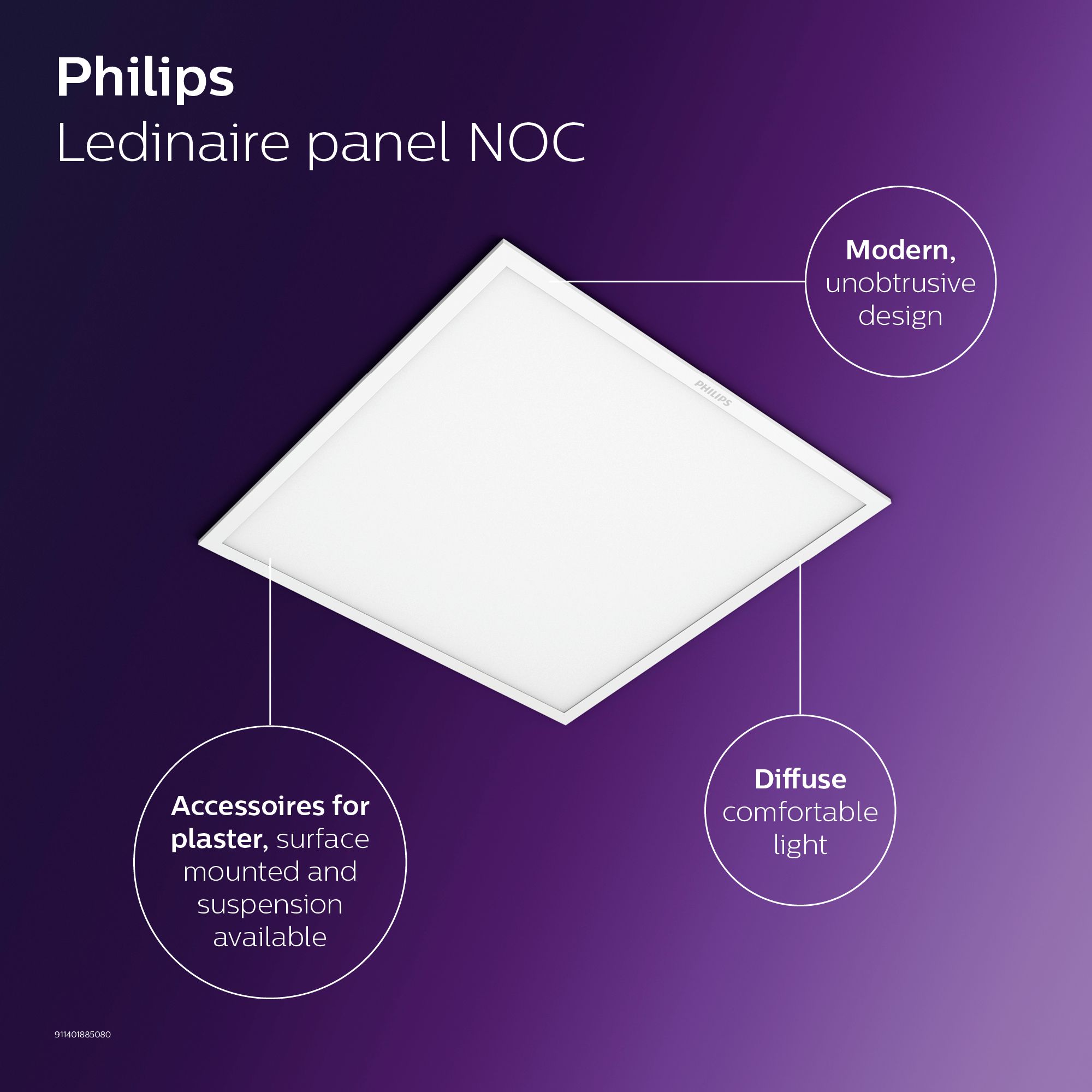

The Philips Ledinaire panel Gen5 (RC065B/RC066B) range features a selection of popular off-the-shelf LED luminaires that offer Philips high quality at a competitive price. Reliable, energy-efficient and affordable, this latest generation of 600 x 600 mm, 620 x 620 mm, 300 x 1200 mm, and 600 x 1200 Ledinaire LED panel lights are designed for diffuse, comfortable lighting in a wide range of general lighting applications. Our range of Ledinaire panels lighting is also available with accessories for easy installation on different types of ceilings—just what you need.

Benefits

No risks, trusted performance
Good quality, easy to use
No confusion, easy product selection
Innovative All-in multicolor and basic lighting control versions
Broad range

Features

3400 lm/ 3600 lm / 4100 lm: L80 at 50K hrs, L70 75K hrs and 3-year warranty
IP20/IP40
Connectors: white quick connectors and flywire
Sizes: 60 x 60 mm / 62 x 62 mm / 30 x 120 mm / 60 x 120 mm
Color rendering: CRI 80 at SDCM <5
3000K / 3500K / 4000K / 6500K
PSU / PSD
Efficacy: 120Lm/W
All-in: 3000K, 3500K, and 4000K in one luminaire
Emergency lighting via standalone emergency lighting kit

Applications

Offices, Healthcare, Education, Municipal buildings, Retail
