Products

Product Compare
BY200P LED44 L-B/CW PSU
911401512261
110
4400
6500
BY200P LED32 L-B/NW PSU
911401512561
110
3200
4000
BY200P LED44 L-B/NW PSU
911401512361
110
4400
4000
BY200P LED32 L-B/CW PSU
911401512461
110
3200
6500

Product family information

Description

GreenUp LED Welglass luminaire is designed to replace traditional WelGlass up to 70W with only 35% of the load for similar illumination. It is a perfect LED solution for outdoor application and industry of harsh condition like power plant, metal, and non hazardous area in chemical and petrochemical industry. Compared to conventional HID WelGlass, it improves reliability, comfort, while reducing energy and maintenance cost dramatically. GreenUp Welglass comes with 2 different mounting, pipe and bracket, and comes with 2 beam, lambertian and batwing.

Benefits

  • Safe and reliable qualities

  • High energy saving

  • Comfortable light

Features

  • Waterproof, dustproof, impact proof and corrosion proof features, meeting requirements of outdoor application

  • System efficacy 100lm/W, 1:1 replacement of HID up to 68% energy saving

  • CRI>80, comfortable light with low glare ratings

Applications

Harsh Industry Application

Specifications

  • Mounting type
    Suspended Pipe Surface
  • Operating Temperature range
    -30 to +45 ºC
  • Light Source
    LED
  • Mains Voltage
    220-240V / 50-60Hz
  • Mains connection
    Flying cable
  • Mechanical Accessories

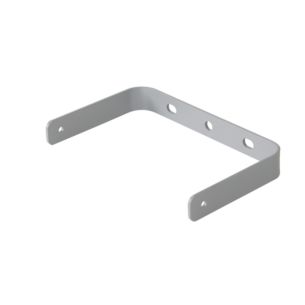

    Mounting bracket Shielding grid
  • Dimming
    PSU: non-dimmable
  • Material
    Housing: die-cast aluminium
  • Lumen maintenance at median useful life 50.000h
    L70
  • Luminous flux
    3.2klm / 4.4klm
  • Power consumption
    29W / 40W
  • Luminaire efficacy
    Up to 110lm/W
  • Correlated color temperature - CCT
    4000K 6500K
  • Color Rendering index - CRI
    80
  • Beam angle
    Lambertian
  • Optical cover/lens material
    PC
  • Optical cover/lens finish
    Opal
  • Protection Class IEC61140
    Class I
  • Mechanical impact protection
    IK08
  • Ingress protection
    IP65
  • Driver replaceable
    No
