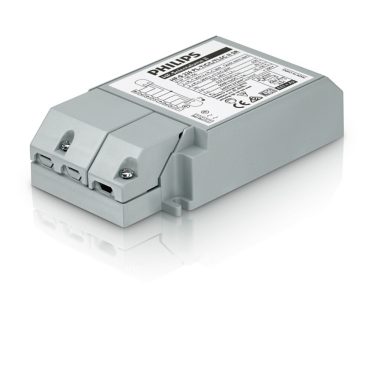

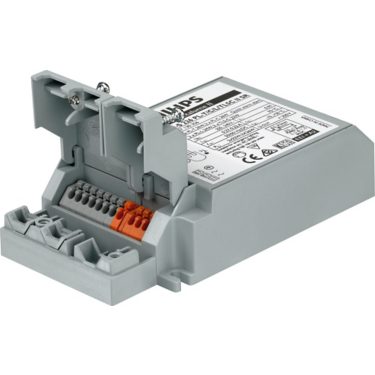

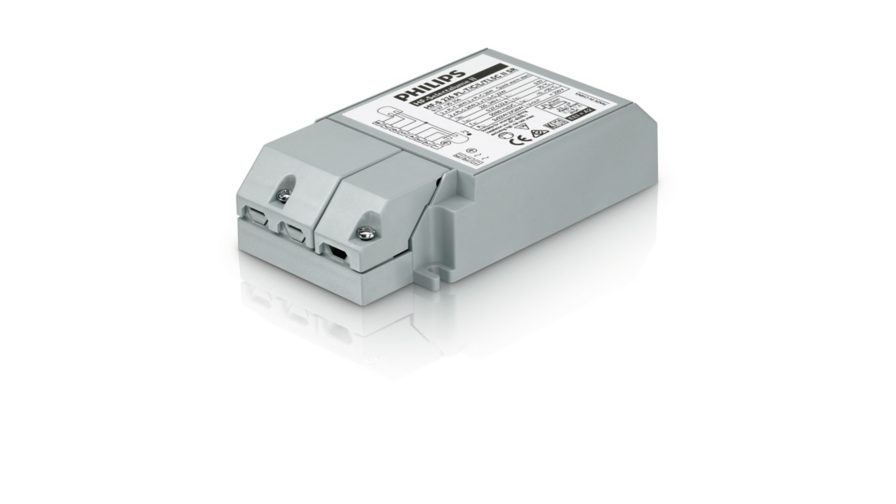

HF-Selectalume II for PL-T/C Strain Relief

Affordable, robust solution

Product family information

Description

HF-Selectalume II independent version is the most cost-effective, reliable, slim and affordable fluorescent solution, with highly disruptive technology for energy saving, system flexibility and unsurpassed performance. The cost-saving HF-Selectalume II PLTC SR has a robust design which meets all relevant international safety and performance standards. The HF-S II strain relief is optimized mainly for PL-T/C lamps.HF-Selectalume II is intended for use with indoor lighting fixtures such as spotlights, downlights and recessed luminaries, which are largely used in office, retail, industry, hotel, restaurant and other applications. The ballast is primarily designed for Indoor application. For outdoor application, the luminaire should be minimum ClassⅠand need to be sufficiently protected against water & dust. The installation should also be guard against any lightening surge or any other necessary electrical protection as deemed in such typical installation & application.

Benefits

  • The HF-SII 2x18/26W PL-T/C/T5c range has a robust design and meets internal safety, EMC and temperature protection requirements

  • Automatic restart (after voltage dip or lamp replacement) ensures easy operation and hassle-free re-lamping (only for 2-lamp ballasts)

  • DC emergency operation in line with IEC/EN 60598-2-22 luminaire norms (only for 2-lamp ballasts)

Features

  • Complies with CE and ENEC (only for 2-lamp ballasts)

  • Robust design – over 70,000 hours lifetime at Ta=50 ˚C and over 50,000 on/off switching operations on one lamp (only for 2-lamp ballasts)

  • Energy efficiency class: A2

Applications

Commercial indoor lighting applications such as retail stores, office buildings, supermarkets, hotels, convenience stores and industrial premises with long operating hours (e.g. in corridors), In luminaires of protection class I and II such as spotlights, downlights and recessed, Suitable for operation with movement-detection control systems like Philips OccuSwitch or in applications with frequentswitching activity (on/off) (only for 2-lamp ballasts)
