GreenPerform Trunking G2

Philips GreenPerform Trunking G2: Energy-efficient LED light-line system

Products

Product Compare
LL130X LED87/NW PSU 6 OP L1500 LUM
911401531842
145
8700
4000
LL130X LED50/NW PSU 3 OP L1500
911401531942
148
5000
4000
LL130X LED87/NW PSU 3 OP L1500 LUM
911401531742
145
8700
4000
LL130X LED87/NW PSU 6 OP L1500
911401531542
145
8700
4000
LL130X LED90/NW PSD 5 OP L1500 LUM BW
911401530742
140
9000
4000
LL130X LED90/NW PSD 5 OP L1500 BW
911401530342
140
9000
4000
LL130X LED90/NW PSD 10 OP L1500 LUM BW
911401530842
140
9000
4000
LL130X LED90/NW PSD 5 OP L1500
911401530942
140
9000
4000

Product family information

Description

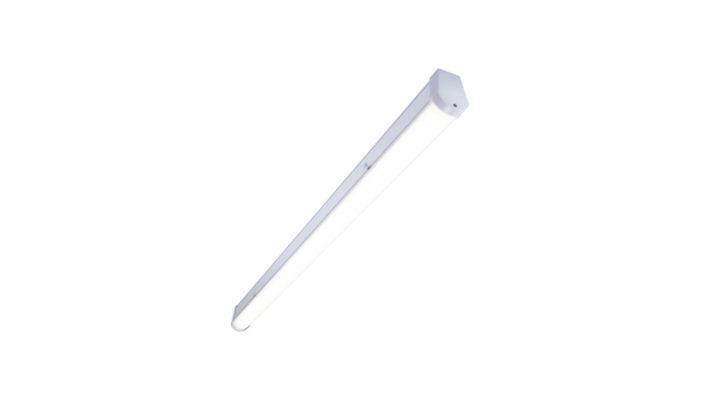

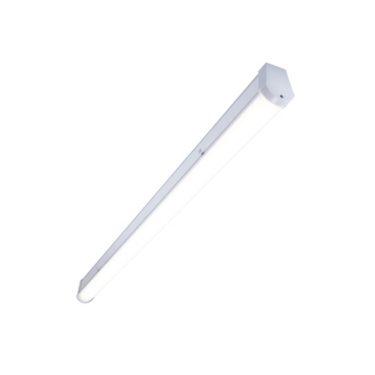

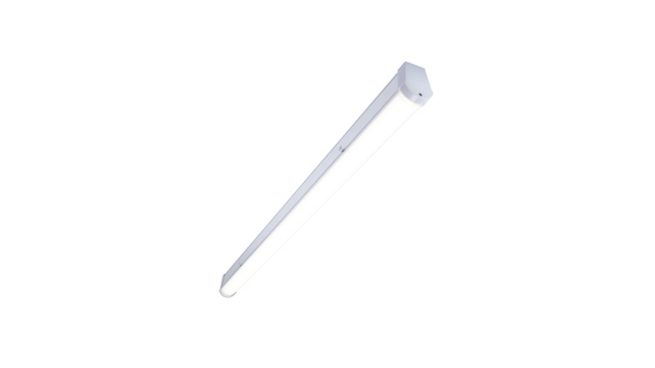

Philips GreenPerform Trunking G2 delivers on the GreenPerform promise of innovative, high-quality luminaires; am energy-efficient light-line system that is designed for simplicity, high efficiency, and long-term reliability. The system is optimized for industrial and commercial applications, and provides consistent, high-quality light with added protection against dust (IP50). Available as trunking and standalone, the LED light lines have transparent inner end caps that improve light continuity along the entire length for more uniform lighting distribution. GreenPerform Trunking G2 is designed for easy assembly and disassembly with a simple press to couple luminaire and trunk. A safe, reliable and versatile choice for 1:1 retrofit replacements or new energy-efficient lighting installations.

Benefits

  • Highly-efficient design and light effect

  • Improved light continuity along the entire length

  • Easy to assemble, disassemble and install on site

Features

  • Up to 148 lm/W

  • 50,000 hours @L70 lifetime

  • Available as trunking and standalone

Applications

Manufacturing, Warehouses

Specifications

  • Mounting type
    Surface Suspended
  • Operating Temperature range
    -20 to +40ºC
  • Light Source
    LED
  • Mains Voltage
    220-240V / 50-60Hz
  • Mechanical Accessories

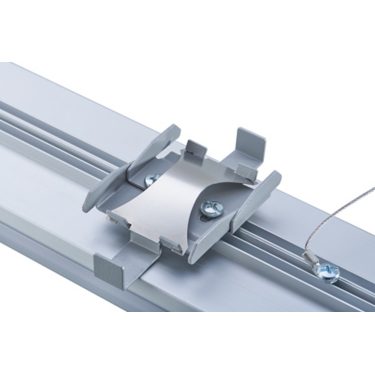

    Suspension bracket Surface mounting bracket I bracket for trucking Endcap PC blank cover
  • Dimming
    DALI
  • Control system input
    DALI
  • Material
    Extrusion Aluminum
  • Main color of the luminaire
    Anodized Aluminum
  • Lumen maintenance at median useful life 50.000h
    L70
  • Flicker / Pst / SVM
    <4%
  • Luminous flux
    5000lm 8700lm 9000lm
  • Power consumption
    LED50: 33.8W LED87: 59.8W LED90: 64.1W
  • Luminaire efficacy
    Up to 148lm/W
  • Correlated color temperature - CCT
    4000K 6500K
  • Color Rendering index - CRI
    80
  • Beam angle
    Lambertian
  • Optical cover/lens material
    PC
  • Optical cover/lens finish
    Opal
  • Protection Class IEC61140
    Class I
  • Mechanical impact protection
    IK03
  • Ingress protection
    IP20
  • Light source replaceable
    No
  • Driver replaceable
    Yes
  • Overall height
    102mm
  • Overall length
    1500mm
  • Overall width
    79mm
  • Installation
    Suspension Surface
