Products

Product Compare
RC099V G3 LED34/865 PSD W30L120 OC CAU
911401595542
105
3400
6500
RC099V G3 LED40/850 PSU W30L120
911401586642
125
3800
5000
RC099V G3 LED34/865 PSU W60L60 OC CAU
911401589342
105
3400
6500
RC099V G3 LED34/965 PSD W30L120 OC CAUHE
911401519843
125
3400
6500
RC099V G3 LED30/840 PSU W30L120 OC CAU
911401589942
110
2900
4000
RC099V G3 LED34/840 PSD W30L120 OC CAU
911401595742
105
3400
4000
RC099V G3 LED35/850 PSU W60L60 OC CAU
911401589442
105
3400
5000
RC099V G3 LED50/965 PSD W60L120 OC CAUHE
911401519643
130
5000
6500

Product family information

Description

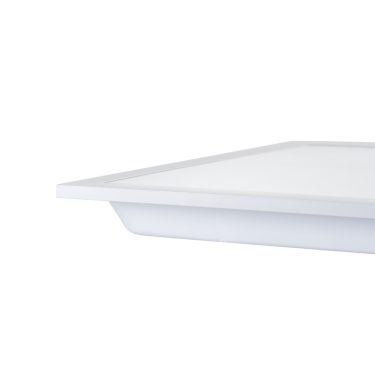

GreenPerform panel RC099V G3 is an affordable LED panel delivering comfortable light with excellent uniformity. It offers 3 types, 600x600,300x1200, and 600x1200mm with max: 140lm/w. Its UGR19 brings more visual comfort in the office. Equipped with Dali, Interact and EcoSet, RC099V G2 offers easy connection to control system to bring better energy saving.

Benefits

  • Full range offer from 600x600, 300x1200 to 600x1200mm to cover key applications

  • Low glare UGR19 to provide visual comfort

  • Dali , Interact, EcoSet interface are available for system control

Features

  • System efficiency 140lm/W(max)

  • 3800lm lumen output for 600x600 and 300x1200mm versions; 5400lm for 600x1200mm version

  • CRI 80 and CRI90 are both available

Applications

Open plan office, Public indoor area, Meeting/training room

Specifications

  • Mounting type
    Recessed
  • Ceiling type
    T-Bar ceiling Concealed profile ceiling
  • Mains Voltage
    220-240V / 50/60Hz
  • Dimming
    WIA: Wireless control, compatible with Interact Pro SIA: Wireless control, compatible with SNS210 sensor
  • Control system input
    Dali / WIA / SIA / EcoSet
  • Integrated sensors
    SIA version with SNS210 sensor
  • Lumen maintenance at median useful life 50.000h
    L70B50
  • Luminaire efficacy
    140lm/w 120lm/w
  • Correlated color temperature - CCT
    840 850 860 940 950 965
  • Risk Group
    RG0
  • Mechanical impact protection
    IK03
  • Ingress protection
    IP20
  • UGR
    22 19
  • Installation
    Recessed
  • Warranty
    5 years
