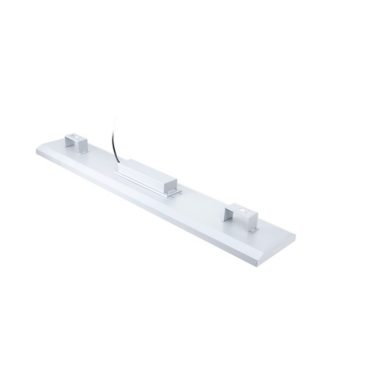

GreenUp Highbay linear G3

Philips GreenUp Highbay linear G3: Economical and reliable highbay luminaires

Products

Product Compare
BY493P 120W/NW PSU WB CN
911401670508
133
16000
4000
BY493P 150W/CW PSU WB CN
911401670808
133
20000
6000
BY493P LED160/CW PSU WB CN
911401674208
133
16000
6000
BY493P 150W/NW PSU WB CN
911401670708
133
20000
4000
BY493P LED200/NW PSU WB CN
911401674308
133
20000
4000
BY493P 120W/CW PSU WB CN
911401670608
133
16000
6000
BY493P LED160/NW PSU WB CN
911401674108
133
16000
4000
BY493P LED200/CW PSU WB CN
911401674408
133
20000
6000

Product family information

Description

Philips GreenUp Highbay linear G3 provides the optimal balance between efficient performance and economical price. The latest generation of this luminaire family covers key runner product ranges and includes the option of both on-off and EcoSet versions. Competitive specifications, low maintenance and long-term quality and reliability, make GreenUp Highbay linear G3 a brighter choice for warehouse and logistic center applications that require economical and reliable highbay luminaires.

Benefits

  • Efficient illumination for industry applications

  • Excellent energy savings

  • Great value for money

Features

  • ~130 lm/W system efficacy

  • 50,000 hours lifetime @Ta 25⁰C

  • Flicker-free lighting

Applications

Warehouses, Logistic center, Other high ceiling indoor applications

Warning & Safety

  • The product is IPX0 and as such is not protected against water ingress. We strongly recommend that the environment in which the luminaire is to be installed is suitably checked

  • If the above advice is not taken and the luminaires are subject to water ingress, Philips / Signify cannot guarantee safe failure and product warranty will become void.

Specifications

  • Mounting type
    suspended
  • Operating Temperature range
    -20 to +45 ºC
  • Light Source
    LED
  • Mains Voltage
    220-240V / 50-60Hz
  • Mains connection
    Flying cable
  • Dimming
    PSU
  • Material
    Housing: Steel
  • Main color of the luminaire
    RAL9006
  • Lumen maintenance at median useful life 50.000h
    L70
  • Flicker / Pst / SVM
    <4%
  • Luminous flux
    16000lm 20000lm
  • Luminaire efficacy
    130lm/W
  • Correlated color temperature - CCT
    4000K 6000K
  • Color Rendering index - CRI
    80
  • Beam angle
    Lambertian
  • Optical cover/lens material
    Diffuser
  • Protection Class IEC61140
    Class I
  • Mechanical impact protection
    IK03
  • Ingress protection
    IP40
  • Light source replaceable
    No
  • Driver replaceable
    Yes
  • Installation
    Suspension
