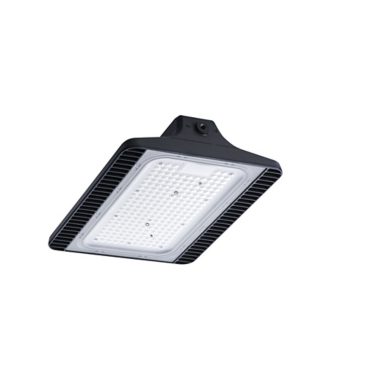

GreenPerform Highbay Rectangular

Philips GreenPerform Highbay: A versatile LED highbay that’s designed to optimize performance

Popular downloads
View all downloads
Where to buy

Products

Product Compare
BY570P LED150/840 PSD HRO CAU
BY570P LED150/840 PSD HRO CAU
911401582643
137
20000
4000
Product leaflet PDF
Where to buy
BY570P LED150/840 PSD NB CAU
BY570P LED150/840 PSD NB CAU
911401582543
137
20000
4000
Product leaflet PDF
Where to buy
BY570P LED200/840 PSD WB CAU
BY570P LED200/840 PSD WB CAU
911401582743
141
25000
4000
Product leaflet PDF
Where to buy
BY570X LED100/NW SIA HRO PP
BY570X LED100/NW SIA HRO PP
911401571543
150
10000
4000
Product leaflet PDF
Where to buy
BY570P LED150/840 PSD WB CAU
BY570P LED150/840 PSD WB CAU
911401582443
137
20000
4000
Product leaflet PDF
Where to buy
BY570X LED100/NW SIA WB PP
BY570X LED100/NW SIA WB PP
911401571343
150
10000
4000
Product leaflet PDF
Where to buy
BY570X LED150/NW SIA NB SP
BY570X LED150/NW SIA NB SP
911401579243
139
15000
4000
Product leaflet PDF
Where to buy
BY570X LED200/CW SIA WB SP
BY570X LED200/CW SIA WB SP
911401580043
143
20000
6500
Product leaflet PDF
Where to buy

Product family information

Description

The GreenPerform Highbay Rectangular continues the GreenPerform family’s enviable reputation for reliable performance, provi. Not only does it deliver Unified Glare Rating (UGR) control with its optimized optical design, it also promises leading system efficiency, compact dimensions and extended long-term quality. Optimized for almost all industrial applications, it is also fully compatible with IoT software such as the Interact scalable system.

Benefits

  • Excellent energy savings

  • Long-term quality and reliability

  • Great design flexibility and convenience thanks to optimized optics and multiple control options

Features

  • up to 156lm/W system efficacy

  • 75,000 hours L70B50 lifetime @Ta 35⁰C

  • Glare control (Near Beam), uniform illustration (Wide Beam) and maximal spacing (High-Rack Optic).

Applications

Warehouses, Manufacturing, Distribution center, Exhibition hall

Specifications

  • Mounting type
    Suspended Pipe Surface
  • Operating Temperature range
    -30 to +50 ºC (45 ºC )
  • Light Source
    LED
  • Mains Voltage
    220-240V / 50-60Hz
  • Mains connection
    Flying cable
  • Mechanical Accessories
    Suspension kit Pipe kit Mounting bracket
  • Dimming
    PSU: non-dimmable PSD: Dimmable via Dali-broadcasting Connected: Wireless control, compatible with SNH210 sensor
  • Control system input
    DALI / Wireless
  • Integrated sensors
    SNH210
  • Material
    Housing: die-cast aluminum
  • Main color of the luminaire
    RAL7043
  • Flicker / Pst / SVM
    PSU: <20% PSD: <4% Connected: <4%
  • Luminous flux
    10klm - 25klm
  • Power consumption
    69W - 199W
  • Luminaire efficacy
    Up to 145lm/W
  • Correlated color temperature - CCT
    4000K 6500K 5000K
  • Color Rendering index - CRI
    80
  • Beam angle
    WB: 93° ± 5° NB: 58° ± 5° HRO: 44*88° ± 5°
  • Optical cover/lens material
    PC
  • Optical cover/lens finish
    Clear
  • Protection Class IEC61140
    Class I
  • Mechanical impact protection
    IK06
  • Ingress protection
    IP65
  • Driver replaceable
    Yes
