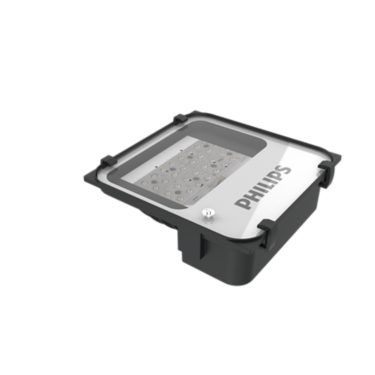

Durabay Prime Highbay

Description

With the successful introduction of the Durabay Family, Philips achieved a breakthrough in high-bay lighting, providing the superior light quality, long service lifetime, reduced energy consumption and less maintenance in the switch on-off (PSU) and Dali dimmable (PSD) versions. Now, with Durabay Prime, Philips continues to improve even further: an improved total cost of ownership, seamlessly integrates state-of-the-art LED lighting with higher efficacy and excellent thermal stability. Durabay Prime delivers a uniform light distribution with a Wide beam and Narrow beam optics that provides outstanding illuminances in industrial and retail environments. It is designed to replace HPI BU 250W/400W, offering up to 70% of energy savings, whilst delivering long lifetime, in often hard to reach maintenance areas.

Benefits

• Suitable for use in harsh Industrial environment

• Option of multiple optics and lumen packages providing application flexibility

• Best in class efficacy and Quality lighting leads to lowering total cost of opportunity

• High quality material and design leads to longer life class for luminaire

Features

• Ingress Protection -IP66

• Impact Resistance IK08

• Inbuilt encapsulated Potted Driver

• Designed for operations under diverse environment from -10˚C to 45˚C

• Life class is 50000 hours (L70B50 @ Ta45˚C)

• Unique Fin design for excellent thermal stability

• Toughened and shatter-proof quality of glass and built-in lens plate enhances safety

• Pressure die-cast housing offers excellent corrosion-resistance and robustness

• System efficiency >130 lm/W

• Two Beam Angles Narrow beam (NB60⁰) & Wide Beam (WB110⁰)

• High Voltage Cutoff @ 325 ± 15V with Auto Restart feature

• 440V Protection for 8 Hrs. (Phase to Phase)

• Internal Surge Protection 4KV

Applications

Manufacturing, Arena and Sports, Warehouses, Airports, Small Manufacturing facilities

Warning & Safety

• Meant for use in Indoor Industrial environment only
